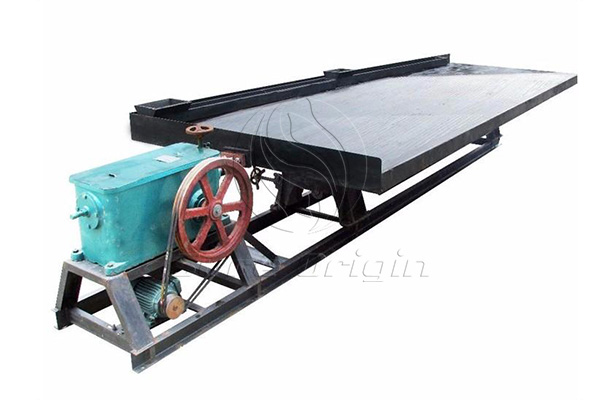

Wet Separating Ore Shaking Table

Wet separating ore shaking tables are wildly used for the selection of 2-0.02 mm ore sand and ore mud grade tungsten, tin, tantalum, iron, manganese, chromium, titanium, tantalum, lead, gold and other colored, black, rare precious metal minerals, selected 4 to -0.02 mm of iron ore Can be used for rough separation, fine separation, sweeping separation and other different operations, select coarse sand (2-0.5mm), fine sand (0.5-0.074mm), mud (-0.074) and other different particle levels.

Capacity: 0 - 2 t/h

Application: Ore sand or ore mud separating

Working Principle

The wet separating ore shaking table system uses the difference in the proportion of the selected minerals, the differential movement provided by the bedside, the sloped water flow and different types of bed strips, so that the grain group is loosely layered on the bed surface, selectively transported, and a fan-shaped ribbon is formed on the bed surface, thus producing different products for the rich and the poor.


The glass-steel shaking table face has a number of advantages:

1. Stiffness, strength, deformation is small
2. Low water absorption rate, no weight gain
3. The working surface is not easy to damage, good wear resistance, small maintenance
4. Economic
5. Anti-chemical corrosion, acid-based, do not avoid mineral pulp is a potion
6. Good weather resistance, stable shape, dry cracking
7. The selection performance is good and the indicator is stable

Technical Parameter

Model 6S-4500
Bed surface type Coarse sand Fine sand Slurry
Bed surface dressing area (㎡) 7.6
Bed Length (mm) 4550
Driving end width(mm) 1830
Concentrate end width(mm) 1530
Max. Feeding size(mm) 2 0.5 0.074
Processing capacity (t/h) 1-1.8 0.5-1 0.074
Feeding thickness(%) 20-30 18-25  15-20
Stroke (mm) 16-22 11-16 8-16
Frequency(r/min) 220 250 280
Water consumption (t/h) 0.7-1 0.4-0.7 0.4-0.7
Grooved section morphology Rectangle Zigzag wave Triangle
Motor power (kw) 1.1 1.1 1.1
